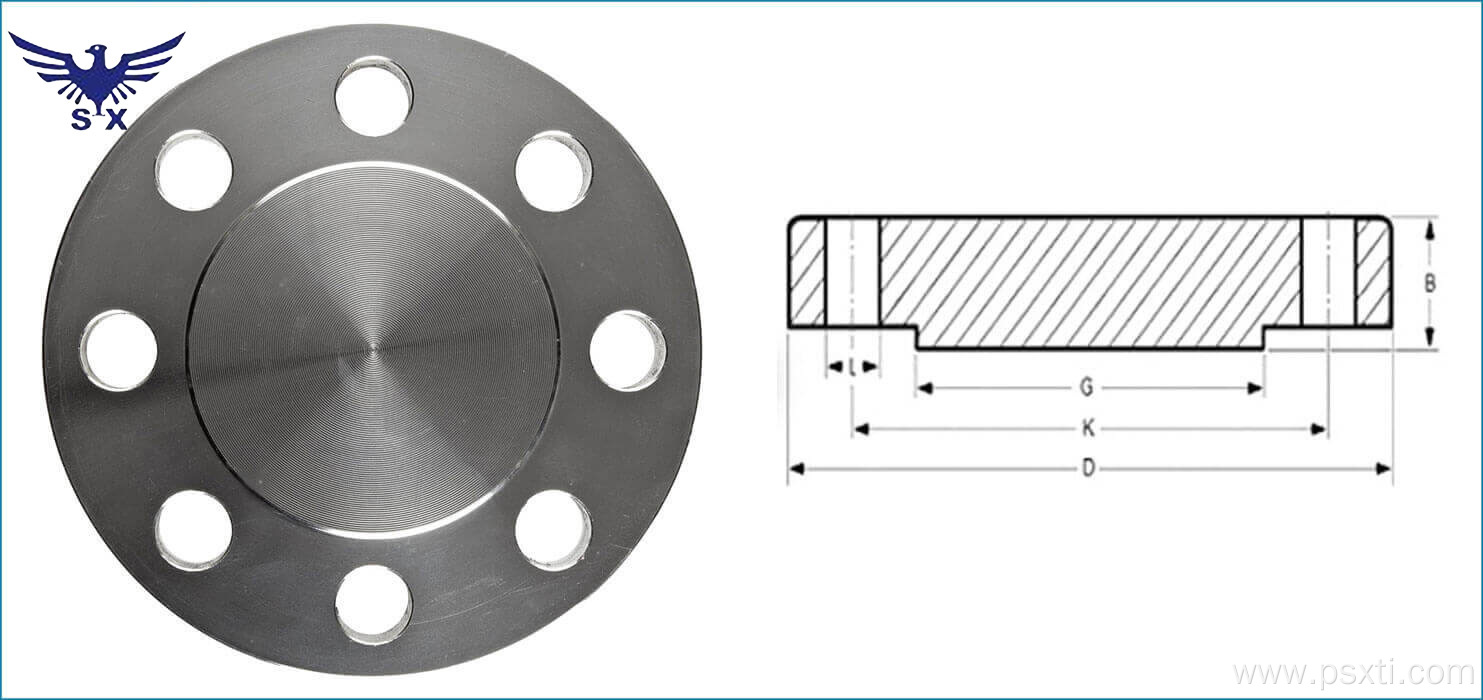

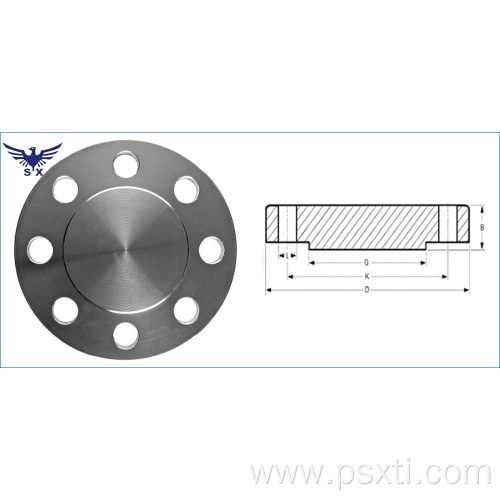

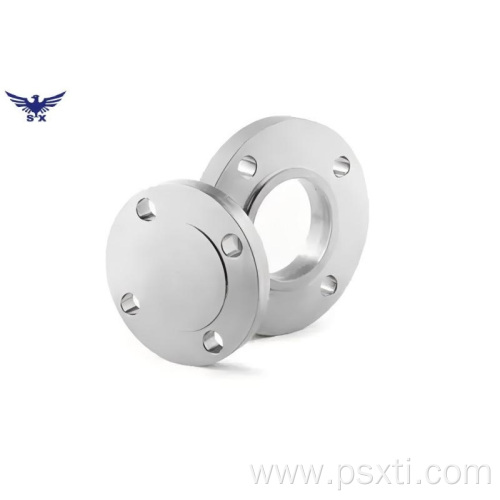

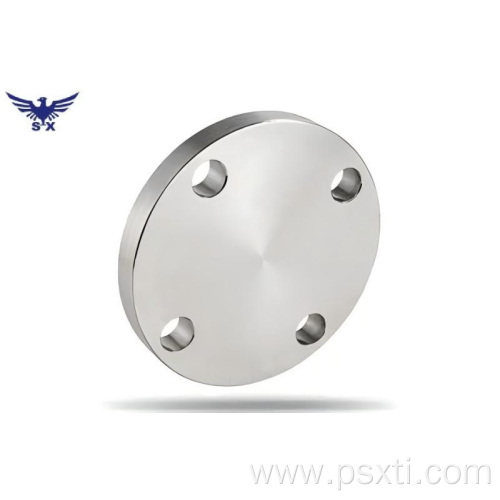

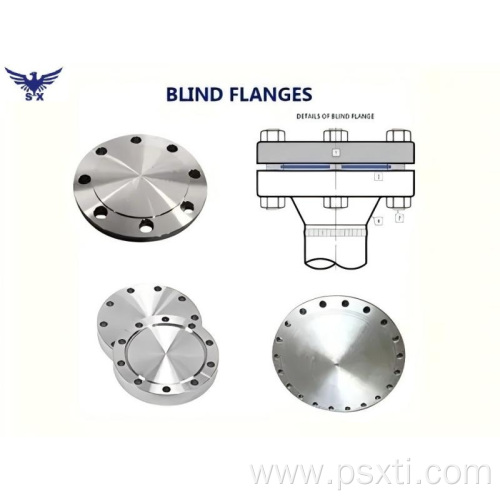

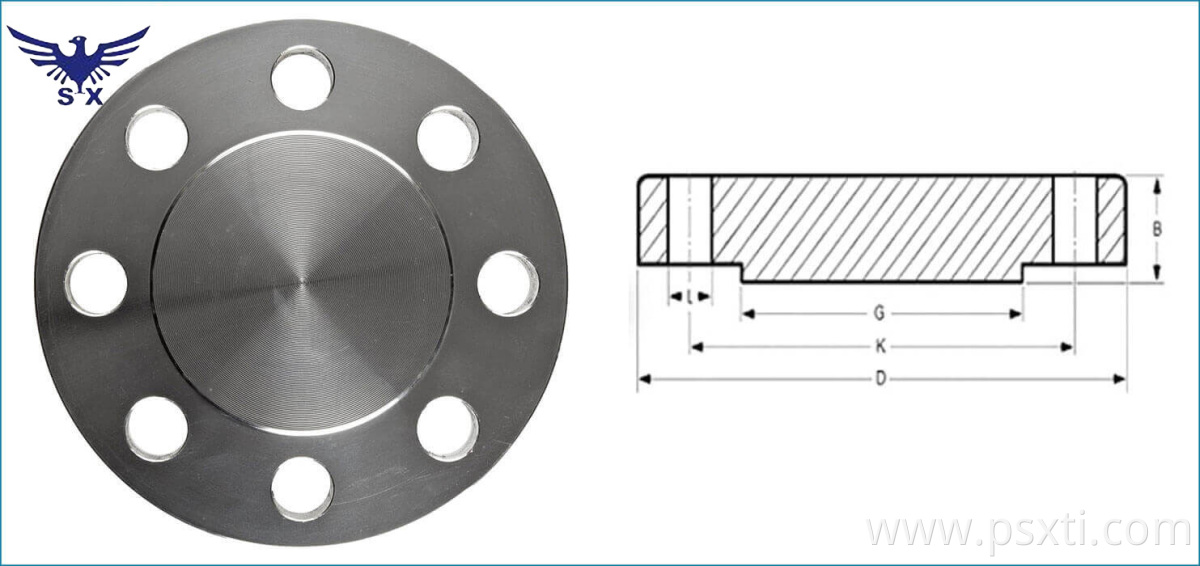

What is a Titanium Blind Flange?
Titanium Blind Flange (also known as ‘Titanium blocking flanges’) are Pipe flanges are used to seal the end of a pipework system. They are typically used in the following situations Pipe flanges need to be sealed or blocked, such as when connecting to valves or pressure vessels. Blind flanges are solid and do not have a hole in the centre like other types of flanges. This makes them useful for blocking the flow of fluids or gases in pipework. Due to the lack of holes, BL flanges are not suitable for pipelines carrying fluids or gases. Instead, they can be used for pressure testing or as a device to access the inside of a pipeline for maintenance or cleaning. They are typically used in high pressure applications and are rated to withstand pressures up to several thousand pounds per square inch.
Advantages and Disadvantages of Blind Flanges
Some of the advantages of blind flanges include ease of installation and removal, as well as the versatility of being able to connect different types of pipes. Another advantage of blind flanges is that they can be easily sealed to prevent the passage of liquids or gases. One potential disadvantage of blind flanges is that they cannot be used for operations that require fluid or gas to pass through the end of a piping system. Additionally, blind flanges may not be suitable for applications that require high pressure, as they may not be able to withstand the pressure without leaking or bursting.
Types of Sealing Surfaces What are the differences between blind flanges?
Sealing surfaces are an important part of a blind flange because they help to create a seal between the Titanium Flange and the mating surface. The type of sealing surface used on a blind flange depends on the specific application and the type of fluid or gas being transported.
Flat face blind flanges are the most common type of sealing surface and are typically used in low pressure applications. Flat face flanges have a flat sealing surface with no raised or recessed areas.
Convex blind flanges have a small raised area around the bolt holes that helps form a better seal. They are typically used in higher pressure applications.
Male and female threaded blind flanges are also used in high pressure applications. Male threaded flanges have a raised area around the bolt holes, while female threaded flanges have a recessed area.
Right-Joint Blind Flanges are used in applications where the flange is bolted to a flat surface. They have a flat sealing surface with no raised or recessed areas.
Tongue and groove blind flanges are used for applications where the flange is bolted to a pipe or other cylindrical surface. They have tongue and groove sealing surfaces that help form a better seal.
Generally, the type of sealing surface used on a blind flange depends on the specific application as well as the pressure and temperature of the fluid or gas being transported. Choosing the right type of sealing surface is important to ensure that the flange provides a reliable and effective seal.
Materials of Blind Flanges
Blind flanges are usually made from cast or forged carbon steel, stainless steel or Titanium Alloy materials. The exact material used depends on the application and design specifications of the flange. Choosing the right material for the flange is important to ensure that the flange is strong enough to withstand the pressure and temperature conditions in which it will be used. We at PSX company in the design and manufacture of customised Titanium Material and Titanium Ally solutions and have been a fabricator for over 20 years. You can contact us for more information.
