Titanium Anode for Copper Foil Electrolysis

Titanium Anode for Copper Foil Electrolysis

Get Latest Price

Min. Order:

1 Set/Sets

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Brand: PSX

Place Of Origin: China

Substrate: Titanium Grade 1, Titanium Grade 2

Shape: Plate/Mesh/Tube/Rod/Wire/Disc or Customized as the design drawing

Current Density: < 20000 A/M2

PH Value: 1—14

Packaging & Delivery

Selling Units

Set/Sets

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

What is Titanium Anode for Copper Foil Electrolysis？

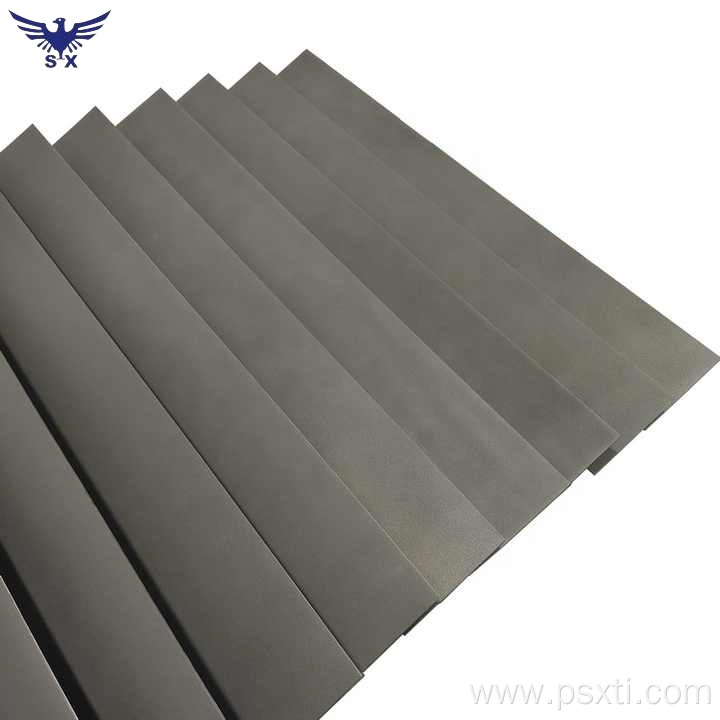

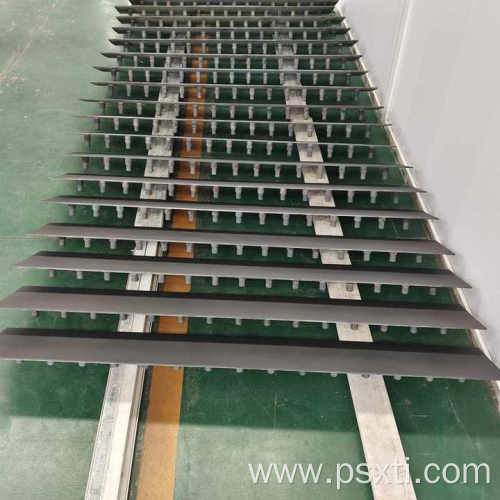

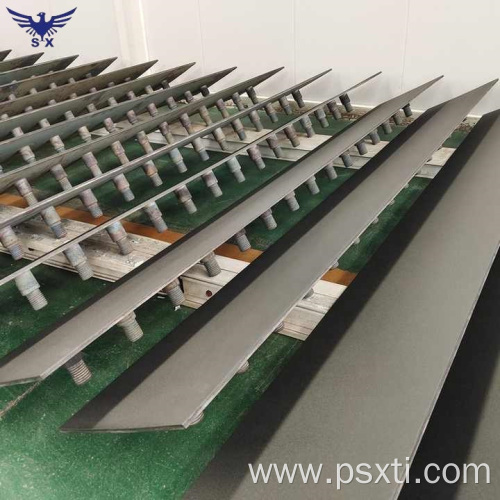

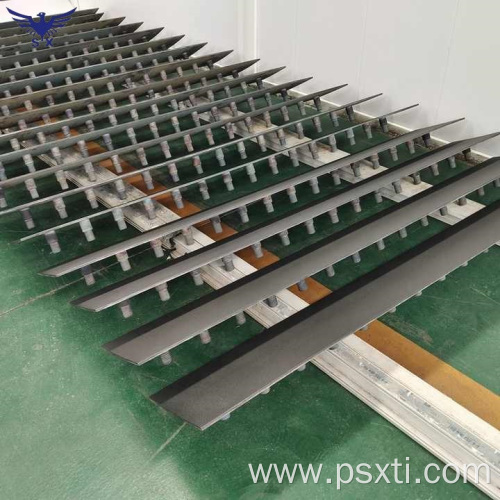

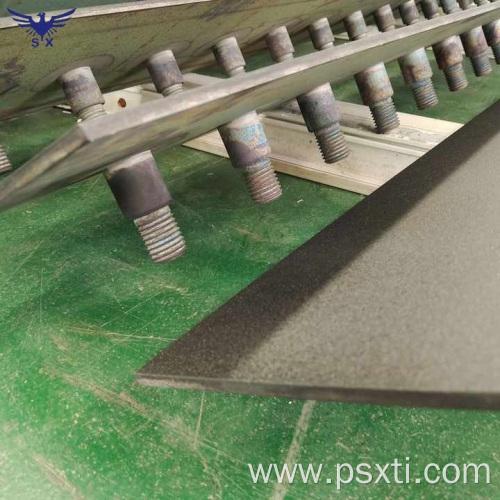

Titanium Plate Anode for Copper Foil Electrolysis is a type of Titanium Anode for Iridium Coated Titanium Anode, this one in the picture is an anode designed in Titanium Plate.

Coated titanium anode, full name titanium base metal oxide coated anode, customarily called DSA (Dimensionally Stable Anode), is a new type of insoluble anode material with excellent conductive and catalytic properties developed at the end of the 1960s, it is the core component of many industrial electrochemical systems or devices, mainly used in electrochemical and electrometallurgical fields. It is the core component of many industrial electrochemical systems or devices, mainly used in two major fields of electrochemistry and electrometallurgy, firstly used in chlor-alkali industry, and now widely used in chemical industry, electrometallurgy, metal foil production, water treatment, environmental protection, electroplating, electrolytic organic synthesis, cathodic protection, electrodialysis and other fields.

Electrolytic copper foil is an important material for copper-clad laminate (CCL) and printed circuit board (PCB), lithium-ion battery manufacturing. In today's rapid development of the electronic information industry, electrolytic copper foil is known as the signal and power transmission of electronic products, communication, “neural network”. At present, China's printed circuit boards and lithium-ion battery manufacturing output value has entered the world's forefront, which also makes China's electrolytic copper foil industry in recent years has made rapid progress.

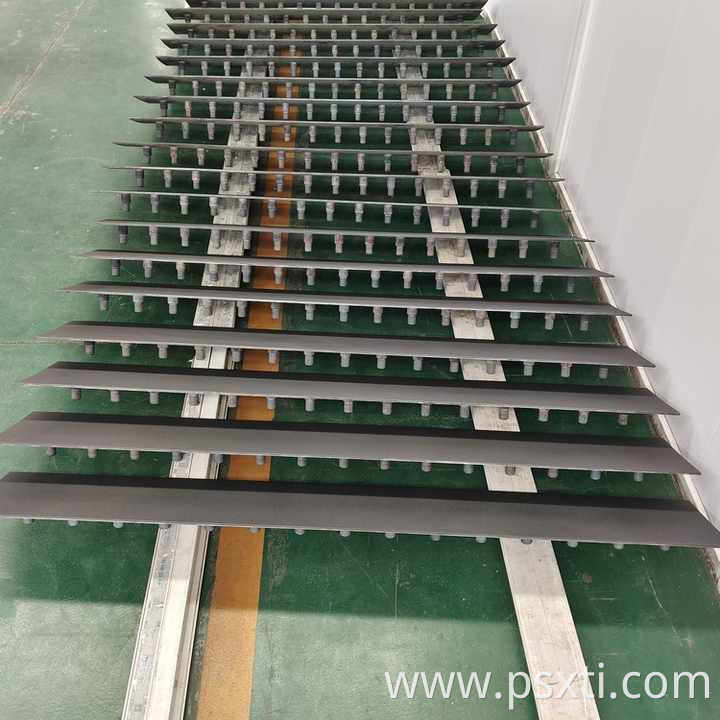

Titanium Plate Anode for Copper Foil Electrolysis

Comprehensive advantages of specialized titanium anode

Low energy consumption

By increasing the macroscopic and microscopic roughness of titanium substrate, optimizing the coating formula and preparation process, increasing the catalytic active surface area of the coating, lowering the real current density, lowering the resistance of the coating film and the resistance of electrochemical reaction, so as to reduce the voltage of the electrolytic copper foil production tank. Our anode tank voltage is about 0.15V lower than that of peer anode products; according to different production currents, each single machine column can save 41-59 thousand kWh of electricity consumption per year.

Good uniformity

From sand blasting and roughening of titanium substrate plate to perfect coating and heat treatment process, it ensures that the coating of the prepared new or repaired plate has good uniformity and improves the quality of copper foil products. The uniformity deviation of the coating is <10%, which is lower than the upper limit of uniformity of 15% in the standard of HG/T 2471-2011 “Metal Anode Coating for Electrolytic Tanks”, playing a key role in improving the uniformity of copper foil products.
