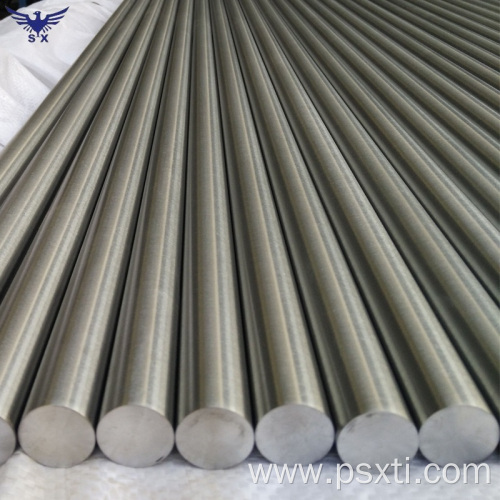

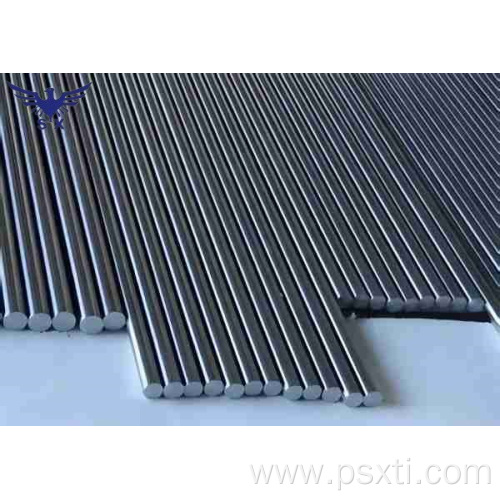

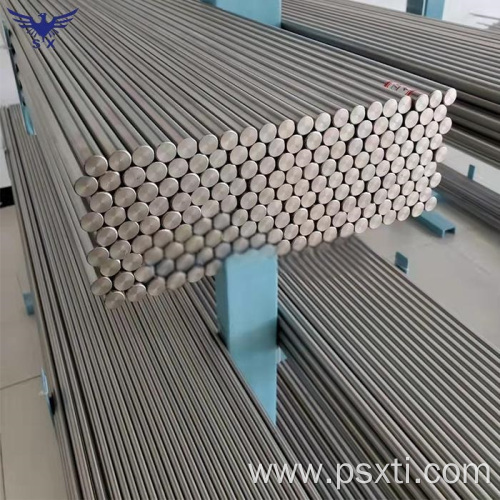

Gr7 Titanium Bar For Industrial
Gr7 Titanium Bar For Industrial
Gr7 Titanium Bar For Industrial
Gr7 Titanium Bar For Industrial
Gr7 Titanium Bar For Industrial
Gr7 Titanium Bar For Industrial

Gr7 Titanium Bar For Industrial

Get Latest Price
Min. Order:1 Set/Sets
Product Attributes

BrandPSX

Place Of OriginChina

ApplicationIndustrial

Packaging & Delivery
Selling Units : Set/Sets

The file is encrypted. Please fill in the following information to continue accessing it

TA9 Titanium Alloy Bar Flaw Detection
TC4 Titanium Alloy Bar Flaw Detection
Product Description

What is Gr7 Titanium Bar For Industrial?

Titanium Rod is a commonly used filtration and support Titanium Material, which is widely used in chemical, pharmaceutical, food processing and other industries. It has the advantages of corrosion resistance, high strength, and moderate porosity, making it an ideal filtration medium. Here is a brief introduction about titanium rods, here at the same time share with you the specific introduction of Gr7 grade titanium rods for industrial use, if you have industrial needs you can always contact us.
Titanium Bar Grade 7 (UNS R52400) is referred to as “Gr. 7” Titanium.
Titanium Grade 7 (UNS R52400) has physical and mechanical properties similar to those of Grade 2. It has superb welding and fabrication properties and, with the addition of palladium, is extremely resistant to corrosion, especially to acids.
Titanium Grade 7
UNS R52400
W.Nr 3.7235

Components for chemical processing and production equipment.

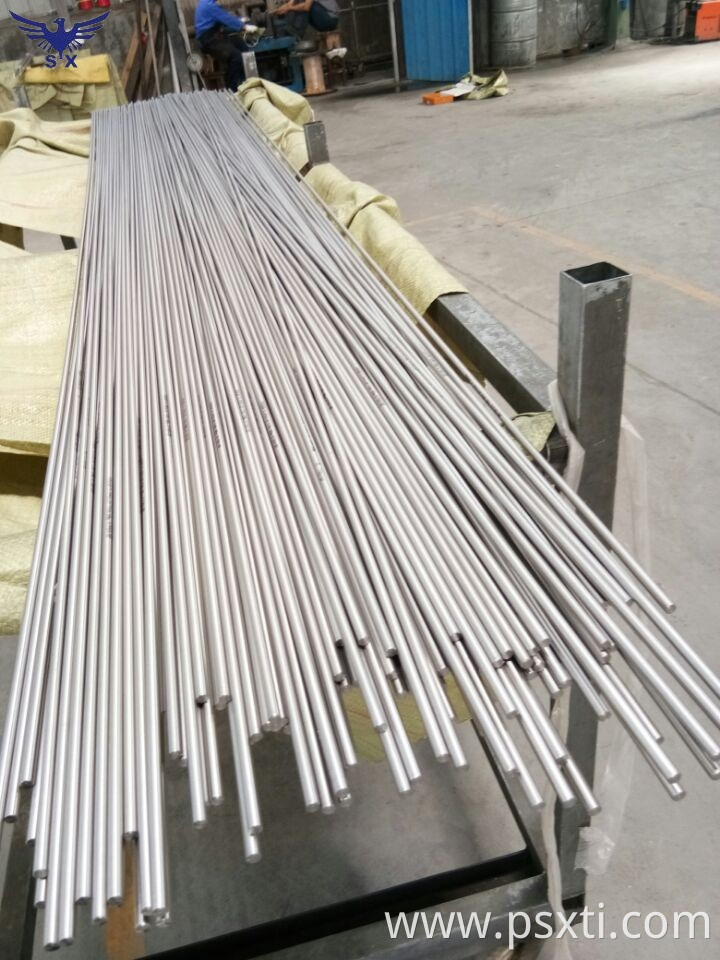

ASTM F136 Titanium Bar



Titanium Grade 7 (UNS R52400) Nominal Composition
Fe: 0.30 max
O: 0.25 max
C: 0.08 max
N: 0.03 max
H: 0.0150 max
Pd: 0.20 max
Ti:Equilibrium
Physical Properties
Density: 0.163 lb/in3, (4.51 g/cm3)
Modulus of elasticity (E): at 70°F (20°C): 16.3 x 10 3 ksi (112 GPa)
Modulus of rigidity (G): at 70°F (20°C): 5.9 x 10 3 ksi (41 GPa)
Coefficient of expansion: 5.4 µin/in.-°F (70°F to 932°F)
9.7 µm/m-°C (20°C to 500°C)
Resistivity: 21 µΩ.in, (53.3 µΩ.cm)
Thermal conductivity: 12.6 Btu-in/ft 2 hr-°F, (21.79 W/mK)
Applicable Standards
Strip and foil: ASTM B265
Typical Mechanical Properties
Annealed
Heat treatable: 1290 °F
Tensile strength: 50 ksi (345 MPa) min - 65 ksi (448 MPa) typ
Favorable operating conditions: -300°F to 1000°F (-184°C to 540°C)
