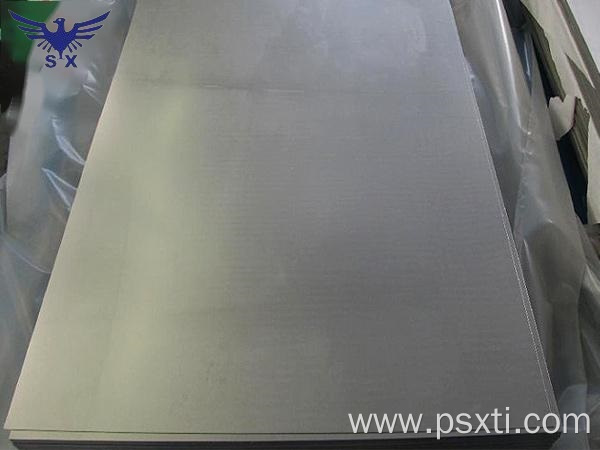

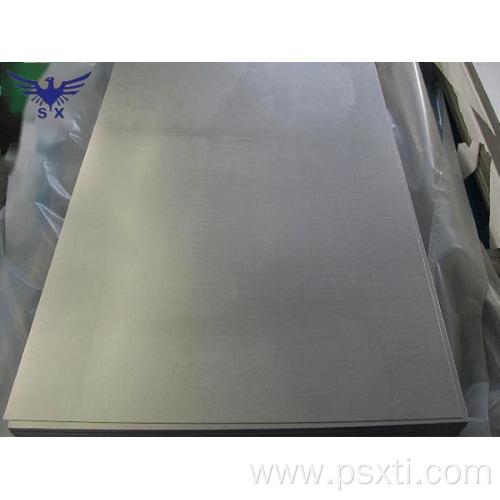

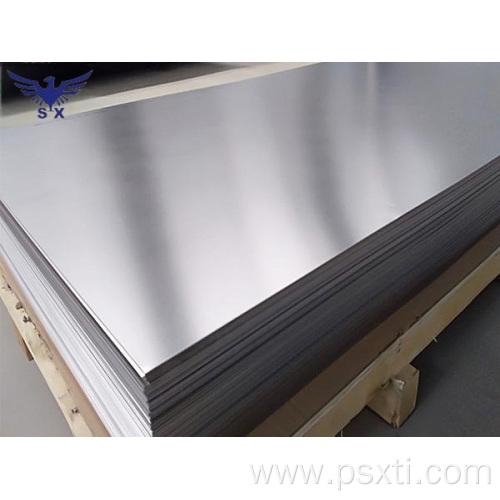

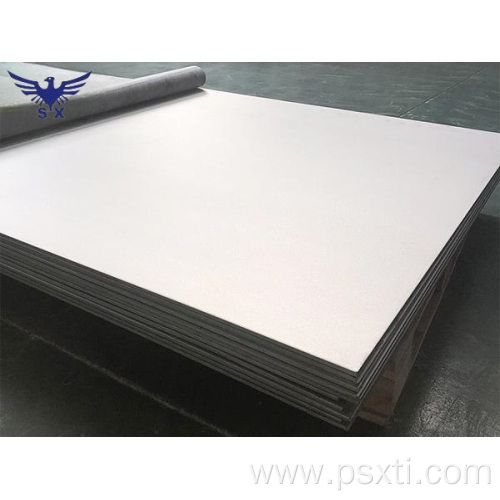

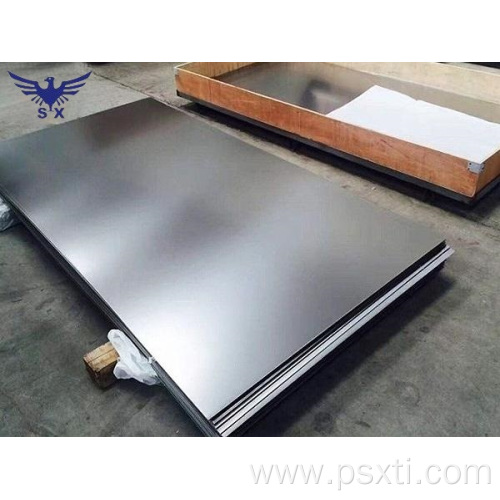

Gr7 Titanium Sheet Plate
Gr7 Titanium Sheet Plate
Gr7 Titanium Sheet Plate
Gr7 Titanium Sheet Plate
Gr7 Titanium Sheet Plate
Gr7 Titanium Sheet Plate

Gr7 Titanium Sheet Plate

Get Latest Price
Min. Order:1 Piece/Pieces
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes

Brand: PSX

Status: New

Species: Flange

Applicable Industry: Building Material Shops, Construction Works

Video Factory Inspection: Provided

Mechanical Test Report: Not Available

National Standard Grade: TA1/TA2/TA9/TA10

American Standard (ASTM): GR1/GR2/GR7/GR9/GR12

Specification Model: DN15-DN1200

Nominal Pressure:: PN0.6-PN40(Class150-Class3000)

Enforcement Of Standards:: HG 20592

Packaging & Delivery
Selling Units : Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
titanium coils
Titanium Sheet water grinding
Product Description

What is Gr7 titanium plate？

Gr7 Titanium Sheet is a kind of high performance Titanium Alloy plate, compared with other grades of titanium plate, it has the following significant features:

1. Chemical composition and basic properties

Gr7 titanium alloy is mainly composed of titanium with a purity of over 99%, 0.12% iron, 0.25% aluminum and 0.2% palladium. This specific chemical composition makes Gr7 titanium alloy has the characteristics of high strength and low density, and its density is lighter than steel, which is a very lightweight material.

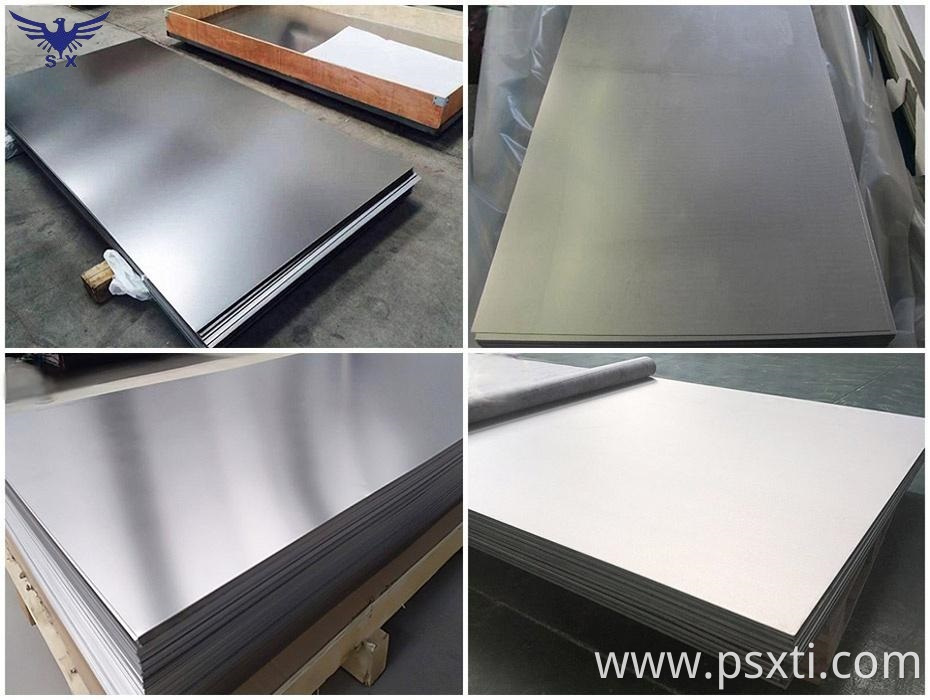

titanium sheet metal

2.Corrosion resistance

Gr7 titanium alloy shows excellent corrosion resistance in both oxidizing and reducing media. Especially in high chloride ion concentration medium, it can significantly improve the crevice corrosion resistance. For example, in 5% boiling sulfuric acid, the use of Gr7 titanium-palladium alloy can significantly reduce the corrosion rate, corrosion resistance has been significantly improved.

3. High temperature performance

Gr7 titanium alloy can maintain stable performance in high temperature environments, with a certain degree of heat resistance. This makes its application more reliable in high temperature environment.

4.Mechanical properties

Gr7 titanium alloy has high strength and good mechanical properties. It has high tensile strength and can withstand high pressure. These properties make Gr7 titanium alloy suitable for applications requiring high strength.

5. Biocompatibility

Gr7 titanium alloy also has good biocompatibility, which gives it a wide range of applications in the medical field. For example, it can be used in the manufacture of artificial joints and medical devices, etc., effectively reducing the pain of patients.

6.Application areas

Due to the above excellent performance of Gr7 titanium alloy, it is widely used in aerospace, medical, chemical and other fields. In the aerospace field, Gr7 titanium alloy is used to make high-strength and light-weight parts, which can effectively improve the operating efficiency of the aircraft. In the medical field, it is used in the manufacture of various medical devices and implants. In the chemical field, Gr7 titanium alloy is commonly used in the manufacture of chemical reactors, tanks, pipelines and containers and other equipment parts that can resist corrosive media erosion.
To summarize, Gr7 titanium sheet stands out for its unique chemical composition, excellent corrosion resistance, high temperature performance, mechanical properties, and good biocompatibility, making it a preferred material in many fields.
